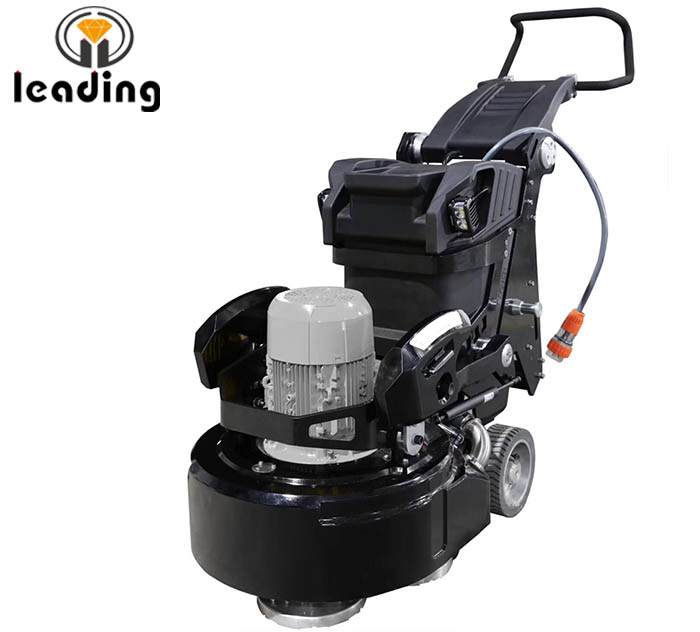

LDT-680 Planetary Floor Grinding / Polishing Machine

LDT-680 Planetary Floor Grinding / Polishing Machine

  • Detailed Specification
  • FAQ

    LDT-650 Planetary Floor Grinding / Polishing Machine

    LDT-650 Planetary Floor Grinding / Polishing Machine


    Born in 2015, LDT-650 Planetary Floor Grinding / Polishing Machine, is a development of products to meet the world market demand, equipped with different special abrasive can be used the base surface treatment, coating removal and different ground construction requirements.

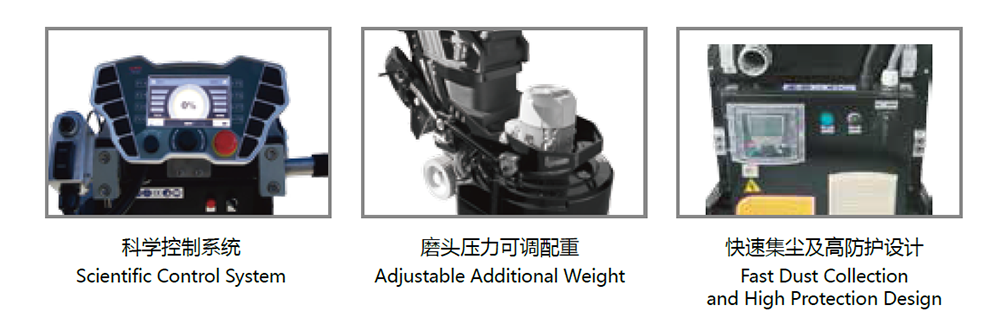

    Following Leading company design essence, the full gear-driving, increase the applicable scope of the machine. Adopts planetary motion, which can effectively solve the hard floor construction requirements, electric grinder pressure adjustment, Adjustable additional weight device, the machine is equipped with USB interface and LED lighting system, perfect human nature of industrial design brings to the operator and relaxed working atmosphere. It can be used for large scope floor polishing directly, change traditional floor polishing process philosophy aspect, opened a simple and easy operation mode.


    LDT-680 Planetary Floor Grinding / Polishing Machine is a humanized grinding equipment, it can be equipped with Leading company on-site technology support system, optimize the construction technological process, reduce the operating personnel's professional skills requirements, at the same time, the machine is equipped with multifunctional grinding plate and adjustable connecting device, meet the different requirements of construction ground. Open construction site the “0 equip mode” what is advocated by us.


    Technical Parameters:

    ModelLDT-680 Propane   Floor Grinding / Polishing Machine
    Power7.5kw   10HP
    Voltage

    Single Phase 220V

    Three Phase 220V/380V/460V

    Ampere16~20A
    Inverter11KW  15HP
    Work area26.77   in / 680 mm
    Weight992   lbs / 450 kg
    Length52.24   in / 1327 mm
    Width26.77   in / 680 mm
    Height42.32   in / 1075 mm
    Revolution0~150rpm
    Rotation0~1200rpm
    Water tank6.6   us gal / 25 L
