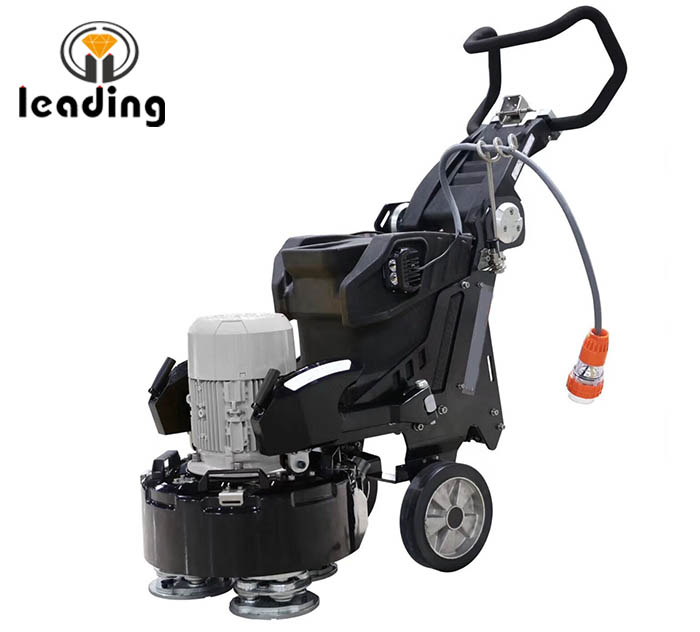

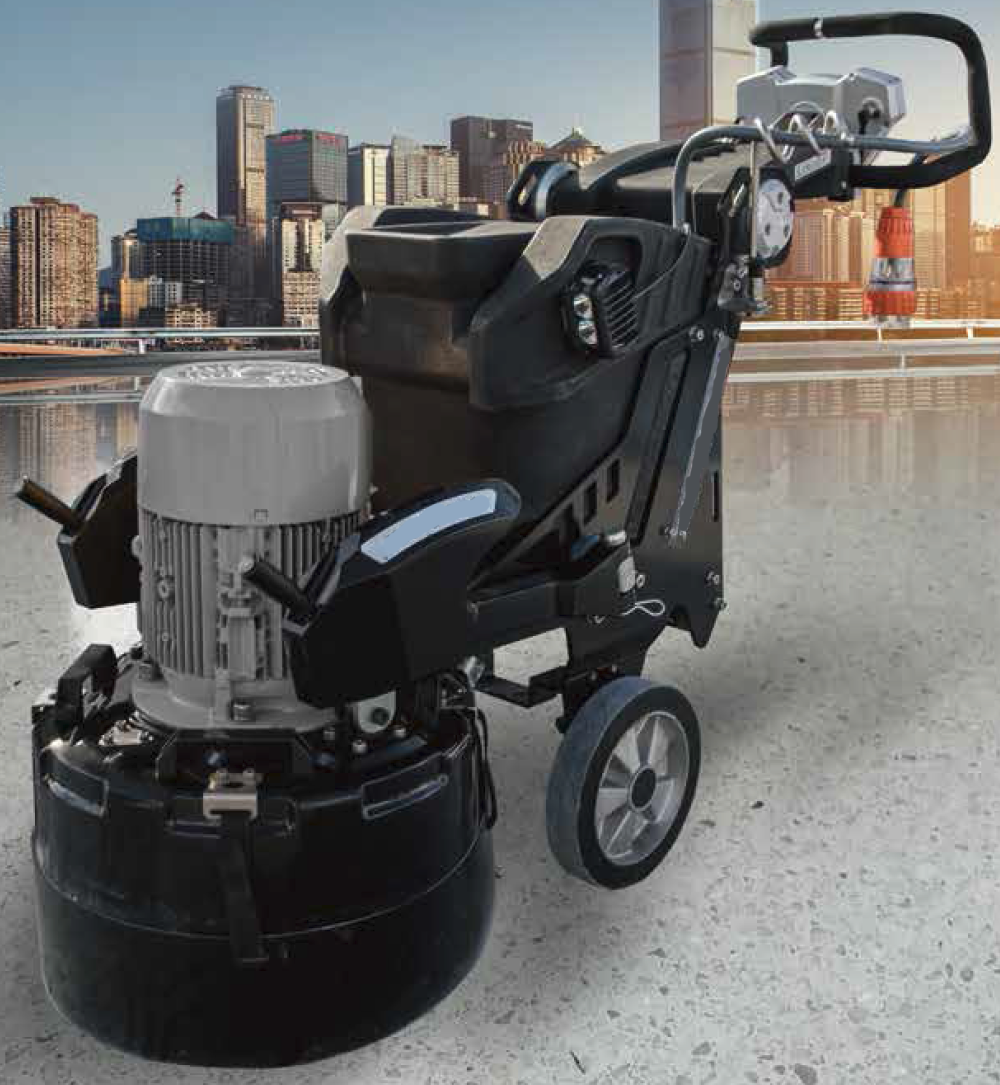

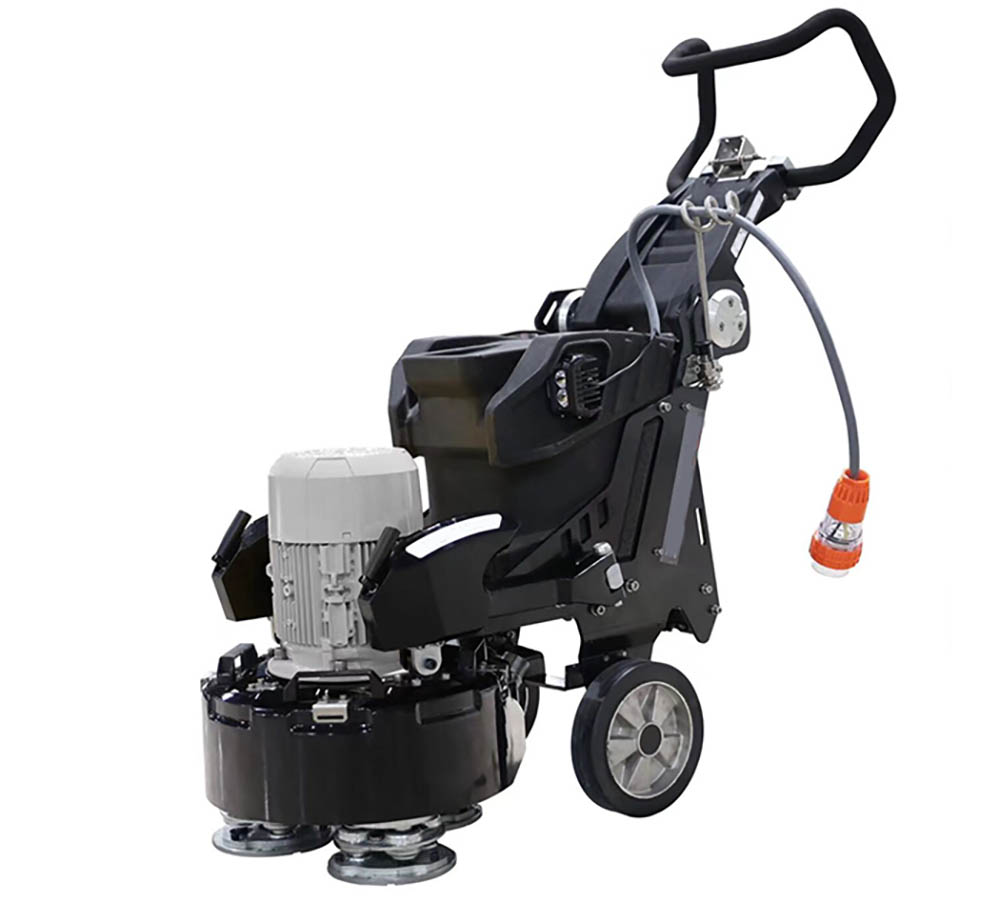

LDT-450 Planetary Floor Grinding Polishing Machine

LDT-450 Floor Grinding Polishing Machine

  • Detailed Specification
  • FAQ

    LDT-450 Planetary Floor Grinding Polishing Machine

    LDT-450 Planetary Floor Grinding Polishing Machine


    LDT-450 Floor Grinding Polishing Machine created in 2018, a planetary running machine which inherits gear-driving technology, special design for small area and home decoration, smart and convenient, easily assemble and disassemble, convenient for transportation. Use single phase 220 Voltage, need only 15A power output, It can match with the machine need and get rid of voltage limit requirements of the construction area. This machine use planetary running, can be fully grinding, increase the quality of construction. It is an indispens able grinding machine for you in the floor construction site.

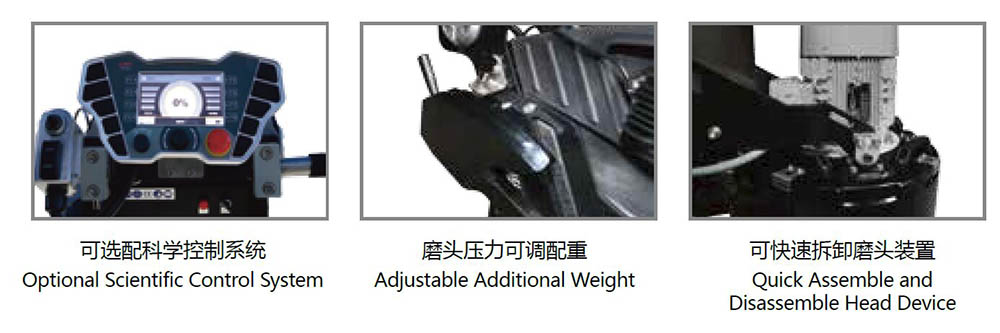

    LDT-450 Floor Grinding Polishing Machine, equip with high energy saving electronic control system and motor, adjustable additional weight for head pressure, to guarantee the usage of single phase 220V, the maximum amps will be under 15A, reduce the dependence on cable and voltage, then enlarge the machine′s application, it′s easy to do quick assemble and disassemble, it can realize the easy transportation and one person independent construction.


    Technical Parameters:

    ModelLDT-450 Planetary Floor Grinding Polishing Machine
    MOTOR3KW 4HP
    INVERTER4KW   5.5HP
    VOLTAGEsingle phase220V/ 3 phase 220V/380V/460V
     AMPERE15A
    WATER TANK2.64   us gal / 10 L
    WORKING WIDTH17.72   in / 450mm
    WEIGHT440   lbs / 200 kg
    LENGTH41.54   in / 1055 mm
    WIDTH18.11   in / 460 mm
    HEIGHT33.07   in / 840 mm
    REVOLUTION0~150 rpm
    ROTATION0~1200 rpm
