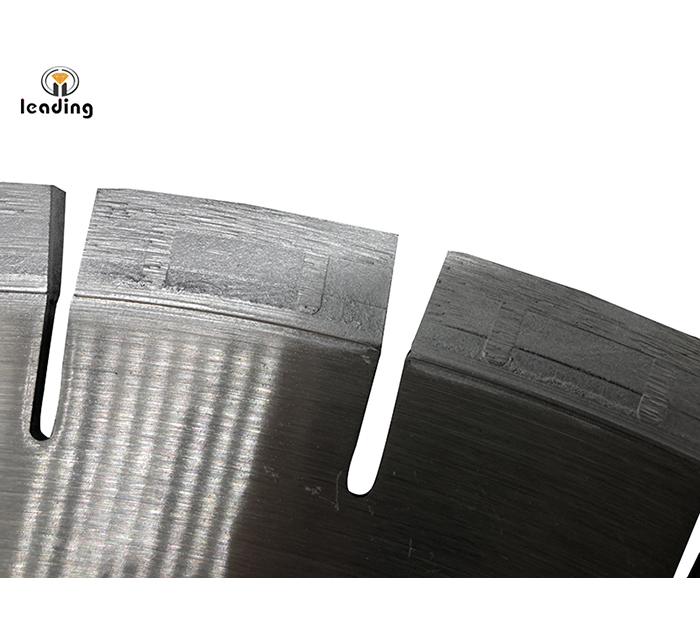

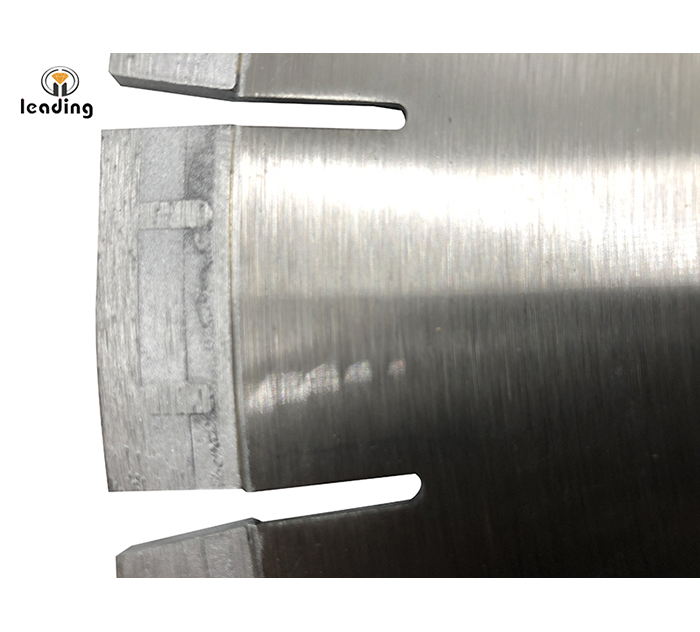

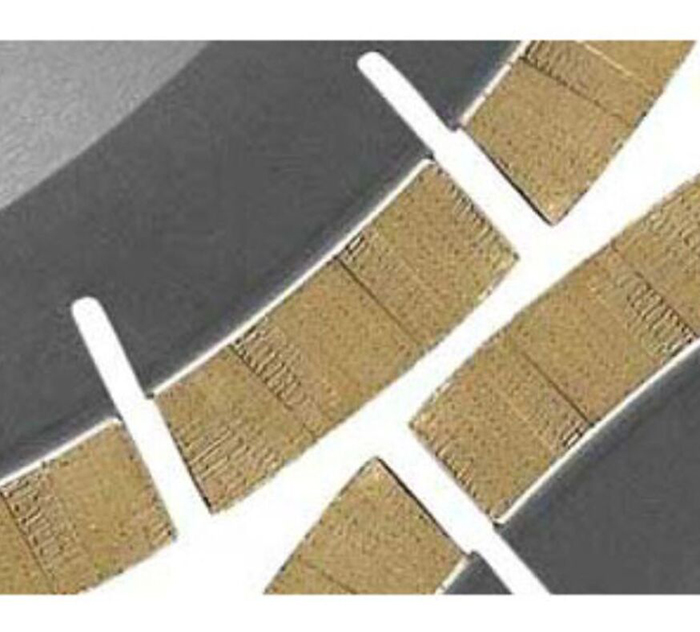

1 This design of segment allows ideal debris removal and better cooling, improves the cutting efficiency
2 This segment will keep good cutting sharpness
| Diameter(mm) | Steel core(mm) | Segment size(mm) | No. | Usage | Application |
|---|---|---|---|---|---|
| 400 | 2.6 | 40×3.8/3.4×15(20) | 28 | RT SPLITTING | Granite |
| 450 | 3.0 | 40×4.2/3.8×15(20) | 32 | RT SPLITTING | Granite |
| 500 | 3.0 | 40×4.2/3.8×15(20) | 36 | RT SPLITTING | Granite |
| 550 | 3.6 | 40×5.0/4.4×15(20) | 40 | RT SPLITTING | Granite |
| 600 | 3.6 | 40×5.0/4.4×15(20) | 42 | RT SPLITTING | Granite |
| 650 | 4.0 | 40×5.4/4.8×15(20) | 46 | RT SPLITTING | Granite |
| 700 | 4.0 | 40×5.4/4.8×15(20) | 50 | RT SPLITTING | Granite |
| 750 | 4.0 | 40×5.4/4.8×15(20) | 54 | RT SPLITTING | Granite |
| 800 | 4.5 | 40×6.0/5.4×15(20) | 57 | RT SPLITTING | Granite |
| 850 | 4.5 | 40×6.0/5.4×15(20) | 58 | RT SPLITTING | Granite |
Other specifications are available upon request.
Silent and non-silent blades are available for choice.
