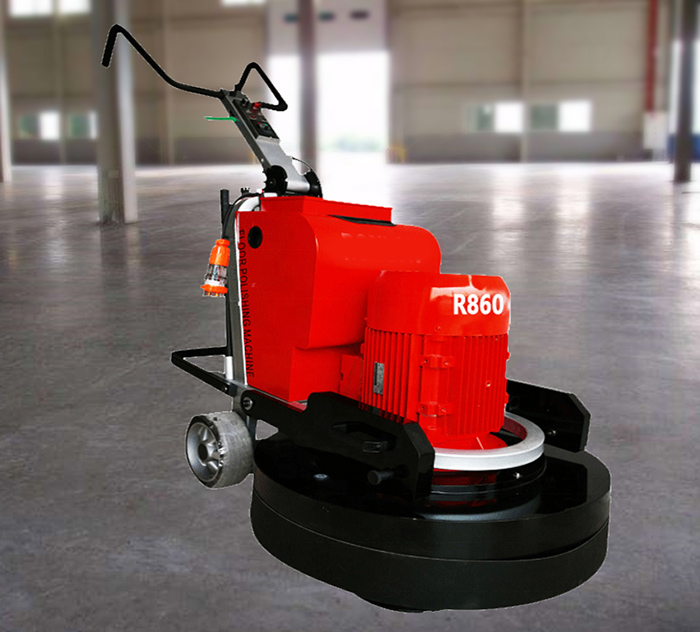

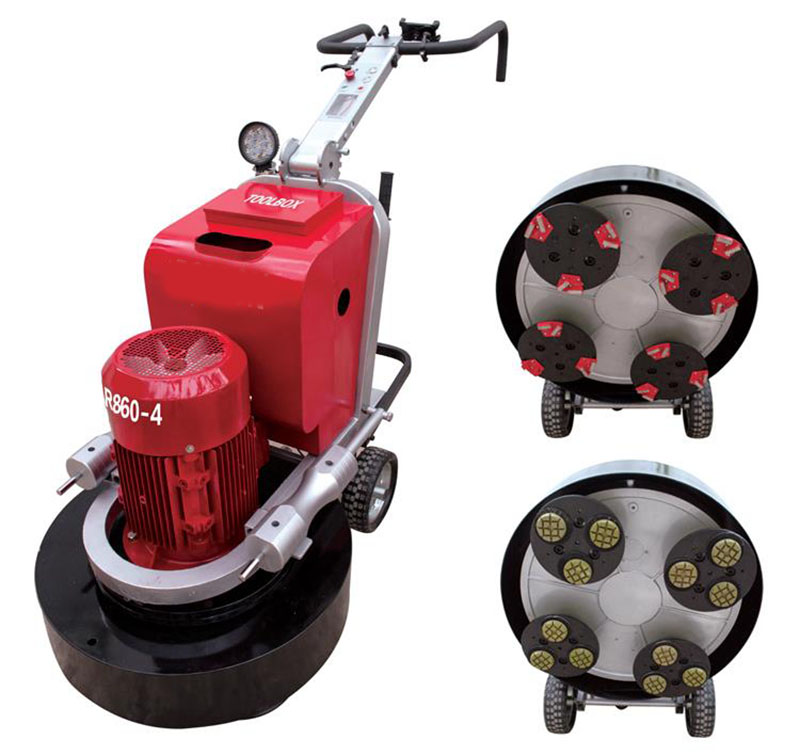

LDR860-4 Planetary Concrete Floor Grinder And Polisher With Four Grinding Heads

LDR860-4 Planetary Concrete Floor Grinder And Polisher With Four Grinding Heads

  • Detailed Specification
  • FAQ

    LDR860-4 machine is the ultimate choice when it comes to high performance and efficiency, with 4 heads grinder you get an up 30% more effective grinding and stripping and obviously a more level floor. This machine will be your No 1 professional machine choice for larger jobs.

    R860-4 Planetary Concrete Floor Grinder And Polisher


    Features and Advantages of LDR860-4 concrete floor grinder:

    1. With full strong helical gear-drive planetary drive system, LDR860-4 is one of the market's most powerful and efficient grinder,

    2. The best choice for concretre floor preparation and repair, as well as all polishing and grinding applications - whether wet or dry. which makes you more professional and competive.

    3. Instant Change System magnetic metal plates with removable Velcro attachments

    4. OEM and ODM welcomed.

    5. LED light for working at night.

    6. Turning type full- steel weight.

    7. Toolbox is fixed on the machine, convenient to repair machine and also tools replacement job will be easily and quickly.

    8. New display panel.

    9. A knob type water switch, to easy control water.

    10. Pull-line angle adjustment device, convenient and labor-saving.

    11. USB interface and adjustable mobile phone holder.

    12. Australia Industrial plug and socket, Waterproof Rating: IP67

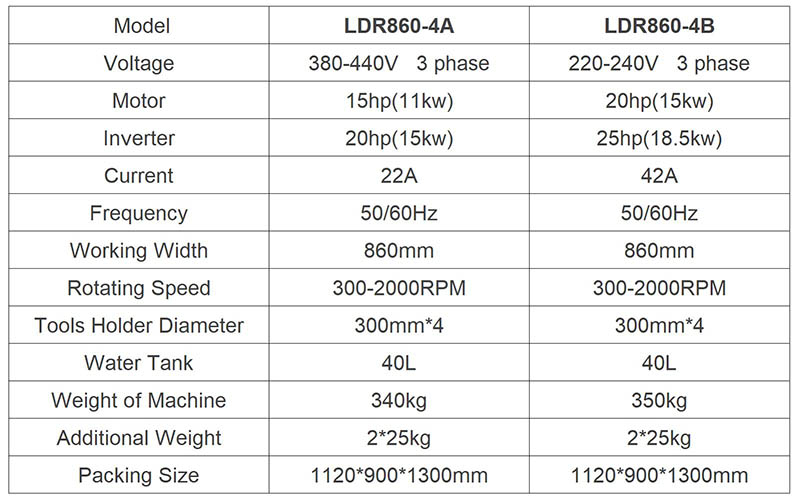

    TECHNICAL PARAMETER

    LDR860-4 Planetary Concrete Floor Grinder And Polisher With Four Grinding Heads

    Standard accessories come with machine

    Concrete Floor Grinder R460

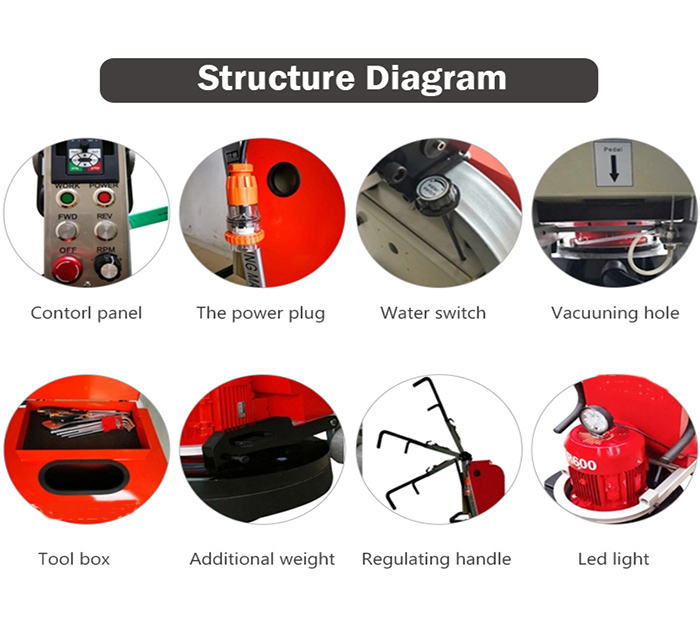

    More details about LDR860 concrete floor grinder:

    LDR860-4 Planetary Concrete Floor Grinder And Polisher With Four Grinding Heads

    1. Smart Control Head

    1. FWD&REV rotating direction prolong the service life of abrasive, and optimize the grinding effect.

    2. Variable speed  to grind rough floors by slowing down   the grinding heads to keep them from bouncing which will stop them from cutting. By speeding up the grinding heads you can polish and burnish the floor with the proper tooling. Variable speed also allows you to work on marble and granite floors.

    3.With the red emergency switch supply safe always

    4.USB port for charging mobiles

    Concrete Floor Grinder R460



    2. Magnetic Instant-Change Tool System

    We developed the Magnetic Instant-change tool mounting system is quick, simple and safe. One tooling system for all the R series grinding machine. The system can mount scrapper tools, regular metal trapezoid tools, and velcro mount tools.

    Planetary Concrete Floor Grinder R600


    3. Super IE 2 motor

    Powerful high efficiency motor save cost;

    We Can supply 2 years warranty for motors;

    R780-3 Planetary Concrete Floor Grinder with 3 Grinding Heads


    4. All Strong Gear Design

    All Strong gear design with drive to each of the three flex  heads as well as power to the drum for the highest production rate in its size, Helical gears in an oil bath just like the transmission in your car to produce high torque to the floor with no noise and wear. just like in the wheel of your car to reduce wear and give your a long working life span.

    Planetary Concrete Floor Grinder R600


    5. Raised water switch&Vacuum connector

    Convenient control for water volume during wet grinding;Big capacity water tank, no need forcontinuous water addition.

    Vacuum connector

    For dry grinding;Standard size, apply to Ronlon vacuum and other brands in the market;Connecting with vacuum will not affect grinder moving during the operation.

    R590 Used Concrete Floor Grinder,Concrete Floor Machine Two Year Warranty For Hot Sale


    7. Special-ordered flexible coupler

    All R series concrete grinder come with best coupler can supply with 2 years warranty, it is the best coupler made in China.

    Concrete Floor Grinder R460
