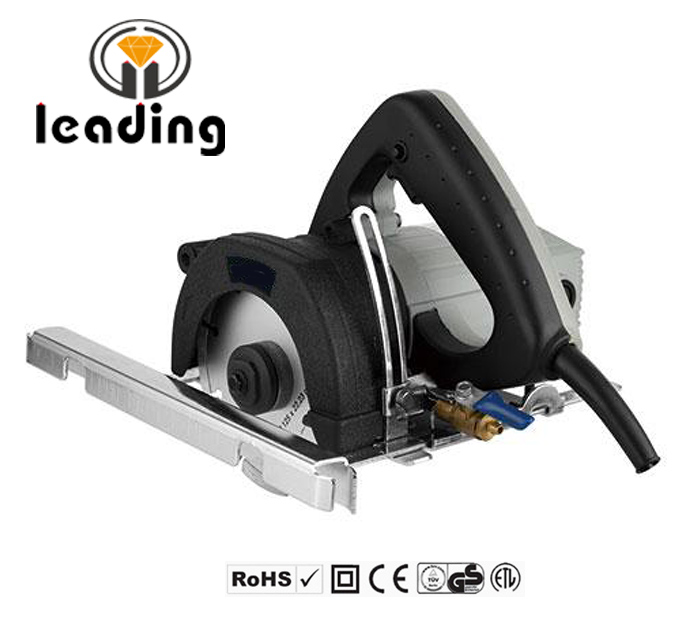

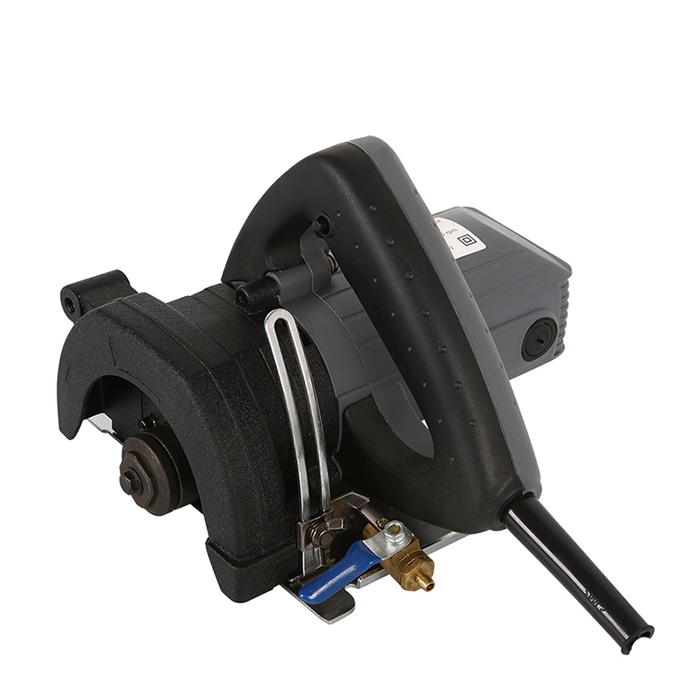

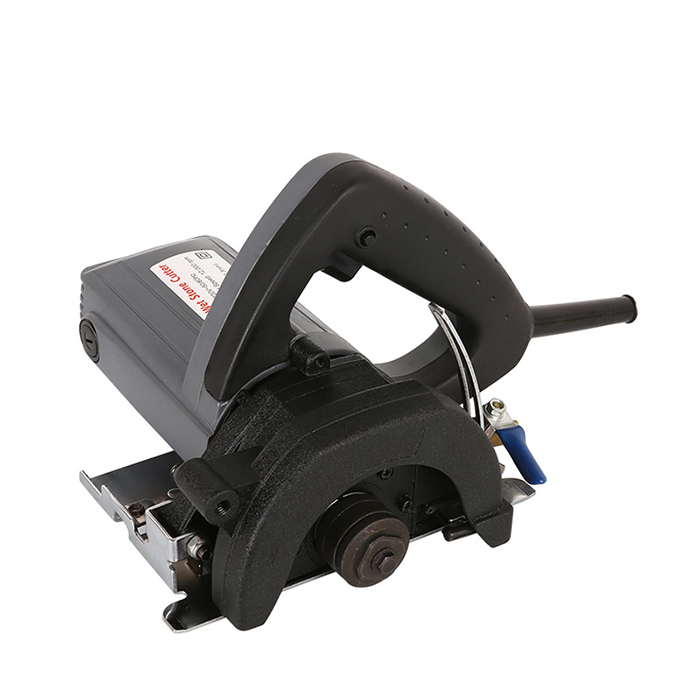

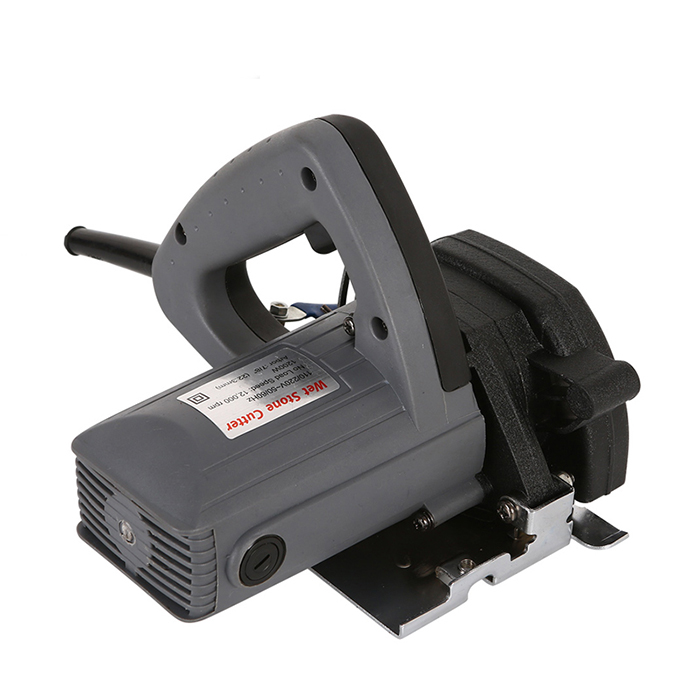

5"/125mm Wet Stone Cutter - WSC125
Specification:
Model: WSC-125
Rated Voltage: 230v/110v
Rated Frequency: 50/60Hz
Rated Input Power: 1200W
Blade Diameter: 5"/125mm
Cutting Depth: 32mm
NO-Load Speed: 12,000RPM
Arbor Size: 22.23mm
Description:
1. Portable 5"/125mm wet stone cutter is able to provide perfect straight cuts which is required for quality fabrication and installation.
2. Equipped with one of the most powerful motors in its class, the 5"/125mm wet stone cutter has the strength to power through tough materials, including porcelain and engineered stone.

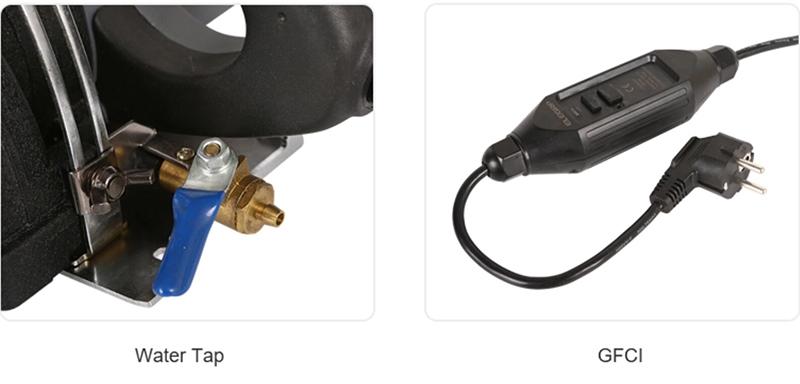

3. When used with the proper diamond saw blade, this 5"/125mm wet stone cutter is also equipped with a high quality water-feed system that can avoid the harmful dust particles which are common in dry cutting applications.

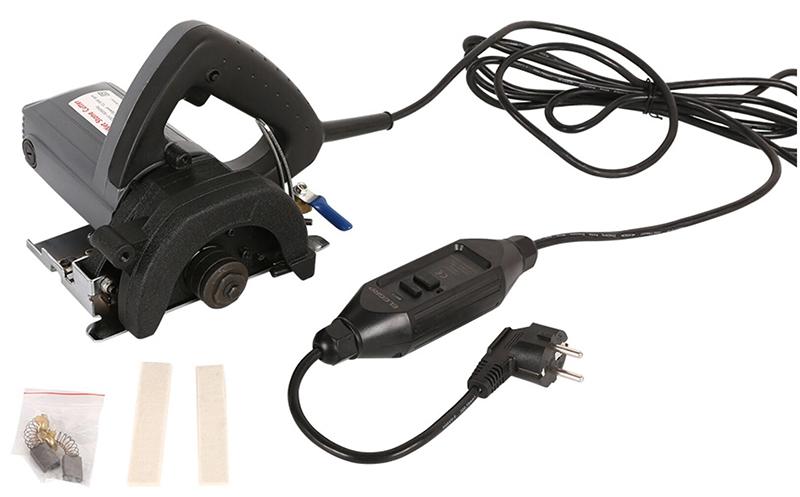

4. Another safety feature included in a built-in GFCI (ground fault circuit interrupter) for body safety.

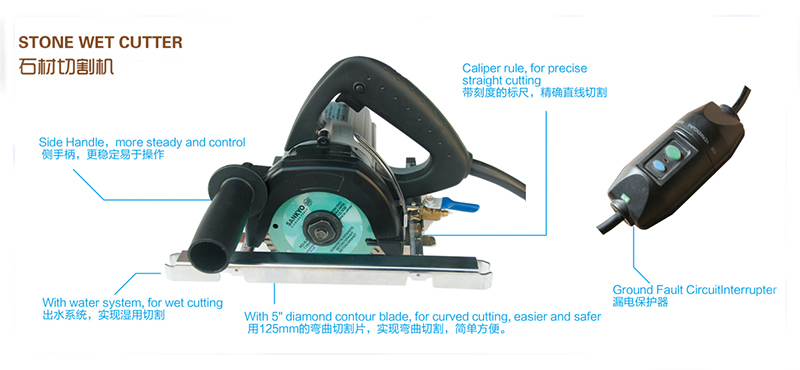

5. In addition, the 5"/125mm wet stone cutter includes two unique features. One is a side handle for more stability and control. The second, it is the ability to accept a curve cutting saw blade.
6. It is safer and easier for curved cutting operations work .Suitable for use in the shop or on the job site. 5"/125mm wet stone cutter is ideal for any professional stone fabricator/installer or tile contractor.
How to Use
1. Select the desired diamond saw blade for the application to be performed.
2. Attach the diamond saw blade onto your -10/220 Wet Stone Cutter making sure to pay attention to the diamond saw blade direction.
3. Connect water supply hose to a standard garden hose.
4. Plug unit into power supply and reset the GFCI.
5. Open water control valve to the desired volume
6. Press power switch to begin your application.
Refer to the owner’s manual for proper usage & mounting instructions for this tool.
