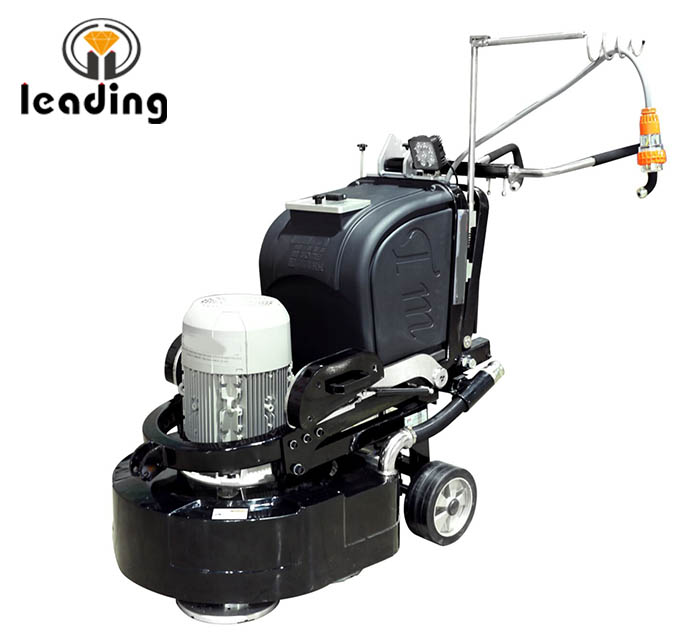

LDT-800 Planetary Floor Grinding / Polishing Machine

LDT-800 Planetary Floor Grinding / Polishing Machine

  • Detailed Specification
  • FAQ

    LDT-800 Planetary Floor Grinding / Polishing Machine

    LDT-800 Planetary Floor Grinding / Polishing Machine



    Born in 2009, LDT-800 Planetary Floor Grinding / Polishing Machine acknowledges new aspect design for full gear-driving four rotation planetary grinder. To ensure the construction efficiency, meanwhile, it can further improve construction standard and enhance the machine function of higher standard to meet different construction requirement market home and abroad and widen market development direction. It gives high quality promise for China-made machine creating brand on international arena.

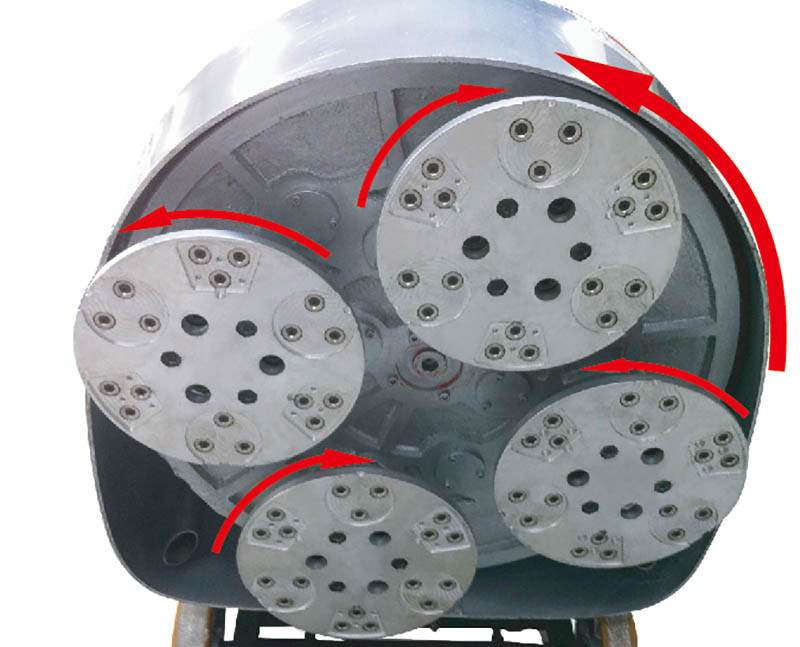

    LDT-800 Planetary Floor Grinding / Polishing Machine is a large-scale integrated grinding and polishing equipment and is one of our company patent products. It uses all gear rotation mode and high-power motors, which makes the machine reliability and grind forceful. At the same time the machine revolution leads four grinding heads running in different directions, offsets the traction effectively between the grinding head to make the operation smoothly and easily. The same work area between the two grinding head enhances the scope of grinding. It can be fitted with 20 different abrasive pads to make the operation more effectively.


    Technical Parameters:

    ModelLDT-800 Planetary Floor Grinding / Polishing Machine
    MOTOR11KW   15HP
    INVERTER15KW   20HP
    VOLTAGE3   phase 220V/380V/460V
    AMPERE20A-30A
    WATER TANK30L
    WORKING WIDTH31.50   in / 800 mm
    WEIGHT1433   lbs / 650 kg
    LENGTH61.02   in / 1550 mm
    WIDTH31.50   in / 800 mm
    HEIGHT42.91   in / 1090 mm
    REVOLUTION0~150   rpm
    ROTATION0~1200   rpm
