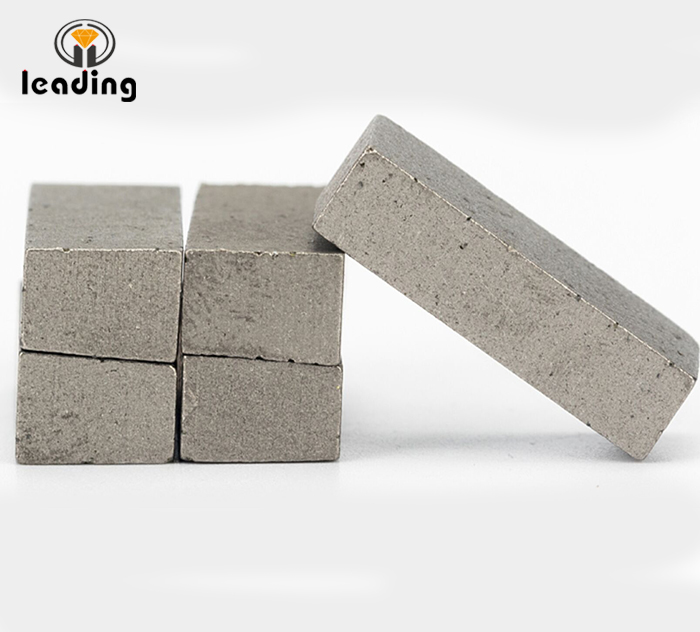

Diamond Segment For Granite Block Cutting Blade

Diamond Segment For Granite Block Cutting

  • Detailed Specification
  • FAQ

    1 The blade has good sharpness and high efficiency at the process of cutting,meanwhile,it has a long lifespan

    2 Good cutting result:smooth cutting,flat surface and even size

    3 Stable cutting,narrow cutting gap,stone waste reduction

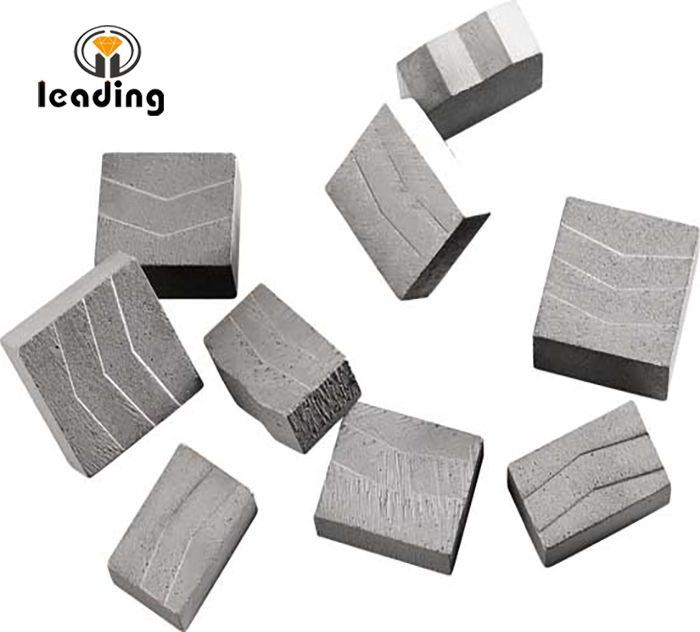

    4 M-Shape segment is easy for diamond opening

    Diameter(mm)Steel core(mm)Segment size(mm)No.ShapeApplication
    9005.024×7.0/6.2×13(15,20)64Z3T/Z3T-M (conical)Granite
    10005.024×7.0/6.2×13(15,20)70Z3T/Z3T-M (conical)Granite
    12005.524×7.4/6.6×13(15,20)80Z3TZ3T-M (conical)Granite
    14006.024×8.0/7.2×13(15,20)92Z3T/Z3T-M (conical)Granite
    14006.524×8.4/7.6×13(15,20)92Z3T/Z3T-M (conical)Granite
    16007.224×9.2/8.4×13(15,20)108Z3T/Z3T-M (conical)Granite
    18007.524×10/9.2×13(15,20)120Z3T/Z3T-M (conical)Granite
    20008.024×11/10×15(20)128Z3T/Z3T-M (conical)Granite
    22009.024×11/10×15(20)132Z3T/Z3T-M (conical)Granite
    25009.024×12/11×20(30)140Z3T/Z3T-M (conical)Granite
    27009.024×12/11×20(30)140Z3T/Z3T-M (conical)Granite
    30009.324×13/12×20(30)160Z3T/Z3T-M (conical)Granite
    35009.524×13.5/12.5×20(30)180Z3T/Z3T-M (conical)Granite

    Other specifications are available upon request.
