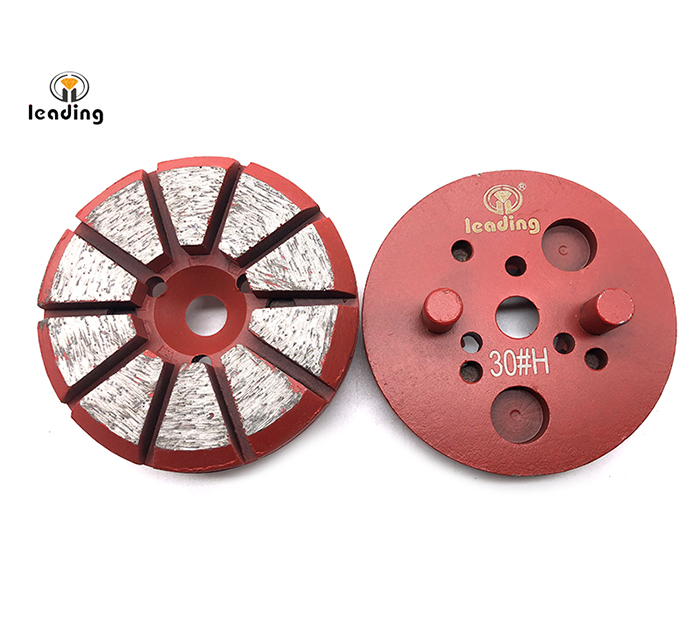

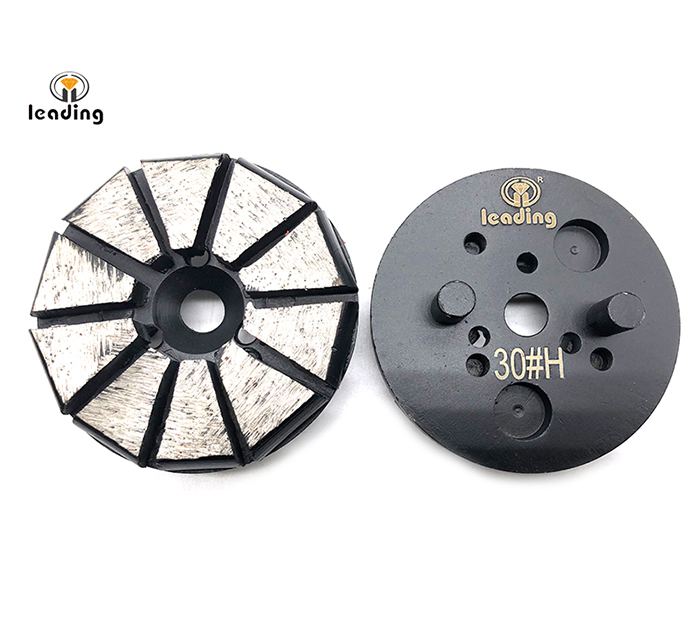

Universal Ten Straight Segment Diamond Grinding Puck Polar Magnetic

1 Diameter: 3"(83mm)

2 Segment Shape: Radial/Beveled edge

3 Segment Size: 24x3.7/20x8mm or made as your demand.

4 Segment No.: 10 segments.

5 Grit: 6#, 18/20#, 30/40#, 60/80#, 120# grit and 200# or made as your demand

6 Bond Type: soft, medium and hard bond.

7 Backing system: Universal/Polar Magnetic system


  • Detailed Specification
  • FAQ

    Leading Ten Segment pucks are designed for all purpose grinding on a wide range of substrates. We offer the following grits 18/20, 30/40, 60/80 and 120/150 grits. These pucks come with multiple holes and pins configurations to fit many machines. These popular designed pucks and plugs in many bonds and designs to cover a wide range of machines in the market. The radial shape enables machines to ride smoothly up and over existing expansion joints while minimizing chipping and reducing stress to machine gears, couplers, and belts. Beveled edge diamonds are also very helpful when attempting to grind without creating noticeable scratch marks on an uneven floor. We will help you find the right bond and diamond surface area to make your machine perform its best.


    Hard Bond: For soft abrasive concrete /mortar; This Harder metal bond segment gives longer life in abrasive applications

    Medium Bond: For Medium /Hard concrete and removal of light chemical residue, paints

    Soft Bond: Softer bond offers fast grinding for very hard concrete


    Universal Ten Beveled Diamond Grinding Puck Polar Magnetic

    Universal Ten Beveled Diamond Grinding Puck Polar Magnetic

    Universal Ten Beveled Diamond Grinding Puck Polar Magnetic
