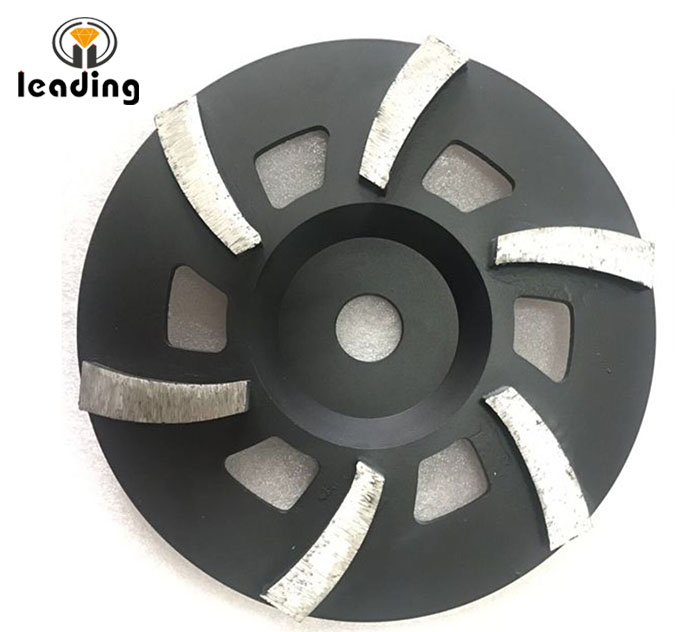

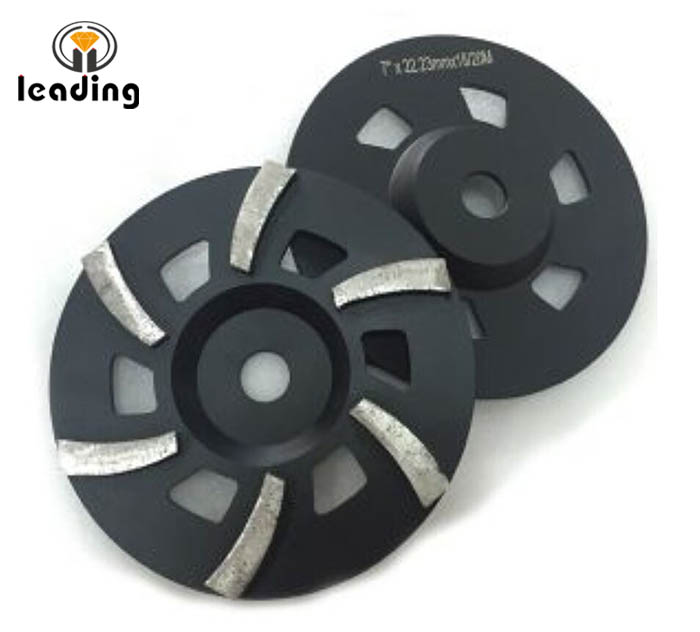

Wing Diamond Grinding Cup Wheel For Concrete

Diameter: 4"(100mm), 5"(125mm), 6"(150mm) and 7"(180mm)

Segment Size: 22x10/14x8mm, 30x6/10x8mm, 48x8/14x8mm

Segment No.: Customized

Connector: 19mm, 20mm, 7/8"(22.23mm) bore or M14 and 5/8"-11 thread.

  • Detailed Specification
  • FAQ

    Diamond Cup Wheels are used for grinding, cutting, polishing concrete, hard concrete, marble, granite, field stones, paint removal, chemical and film removal, and epoxy coating removal.  Diamond Grinding Cup Wheels features come in a vast array of styles with arranged segments to produce fast grinding and cutting. Most have big holes to provide more efficient dust collection and to keep the cutting blade cool. Diamond Cup Wheels have a wide range of uses from simple form clean-up all the way to the concrete polishing, surface preparation of floors, to the shaping of concrete.


    Your application will dictate what type of diamond cup wheels should be used depending on the hardness and nature of the concrete or other masonry materials you are going to grind. If the concrete is hard, the bond of the diamond cup wheel should be soft.  The reason behind it is, diamonds mixed in the matrix are apt to become blunt when grinding hard concrete and the softer bond melts faster eliminating the old worn down blunt diamonds faster resulting in new sharper diamonds beneath to become easily exposed for faster production in grinding and cutting the surface. You should use hard bond if the concrete is softer because diamonds will last longer when grinding softer more abrasive concrete. The harder bond keeps the diamonds longer because the wear is slower so the diamonds are not needlessly wasted shortening the life of the diamond cup wheel.  Our 12seg diamond cup wheel can be used for smoothing, shaping, or beveling.  Our segmented turbo cup wheels, arrow cup wheels, and spiral cup wheels facilitate faster and thorough removal of materials.


    We brings a full range of diamond cups to get the job done right, the first time. We offers a complete line of diamond cup wheels to cover all of your applications. We have various configurations available to get the best performance and finishes from a wide variety of handheld grinders on the market. We also have designed our own blades that have been proven in the industry to help you get through those tough jobs. We have specifically made our own soft bonded cup wheel for the extremely tough hard concrete that is showing up more and more.


    We offer a variety of styles and configurations to cover you for all your grinding applications and surface preparation needs. Check them out below or call for assistance and a representative will be happy to assist you in choosing a quality blade for your job.


    Hard Bond: For soft abrasive concrete /mortar; This Harder metal bond segment gives longer life in abrasive applications

    Medium Bond: For Medium /Hard concrete and removal of light chemical residue, paints

    Soft Bond: Softer bond offers fast grinding for very hard concrete

    Diamond Grinding Cup Wheel With Radial Segments For Concrete

    Diamond Grinding Cup Wheel With Radial Segments For ConcreteDiamond Grinding Cup Wheel With Radial Segments For Concrete
