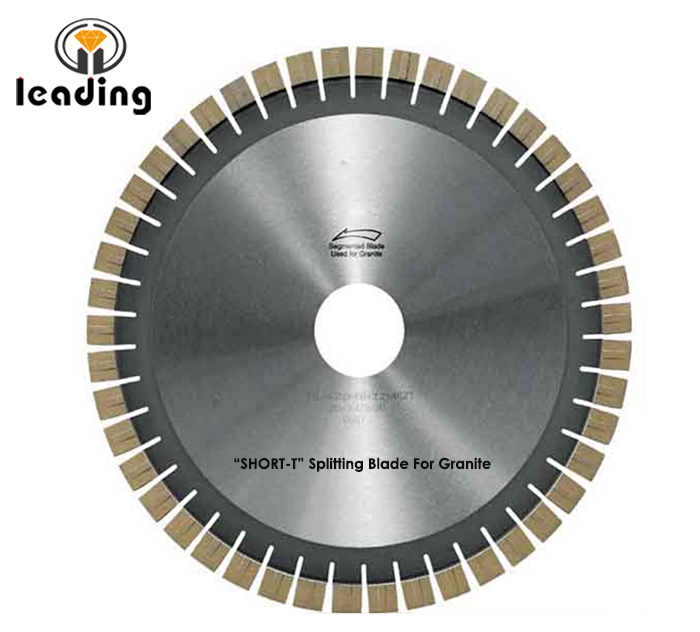

Bridge Saw Blade - SHORT-T Splitting Blade And Segment For Granite

Bridge Saw Blade - SHORT-T Splitting Blade And Segment For Granite

  • Detailed Specification
  • FAQ

    1 Ideal materials removal and better blade cooling

    2 Always keep diamond open for fast and efficient splitting

    3 Higher cutting efficiency than short-R blade design



    Diameter(mm)Steel core(mm)Segment size(mm)Segment NumberUseageApplication
    4002.620×3.8/3.4×15(20)52CurveGranite
    4503.020×4.2/3.8×15(20)58CurveGranite
    5003.020×4.2/3.8×15(20)66CurveGranite
    5503.620×5.0/4.4×15(20)72CurveGranite
    6003.620×5.0/4.4×15(20)80CurveGranite
    6504.020×5.4/4.8×15(20)84CurveGranite
    7004.020×5.4/4.8×15(20)90StraightGranite
    7504.020×5.4/4.8×15(20)94StraightGranite
    8004.520×6.0/5.4×15(20)100StraightGranite
    8504.520×6.0/5.4×15(20)106StraightGranite

    Other specifications are available upon request.

    Silent and non-silent blades are available for choice.

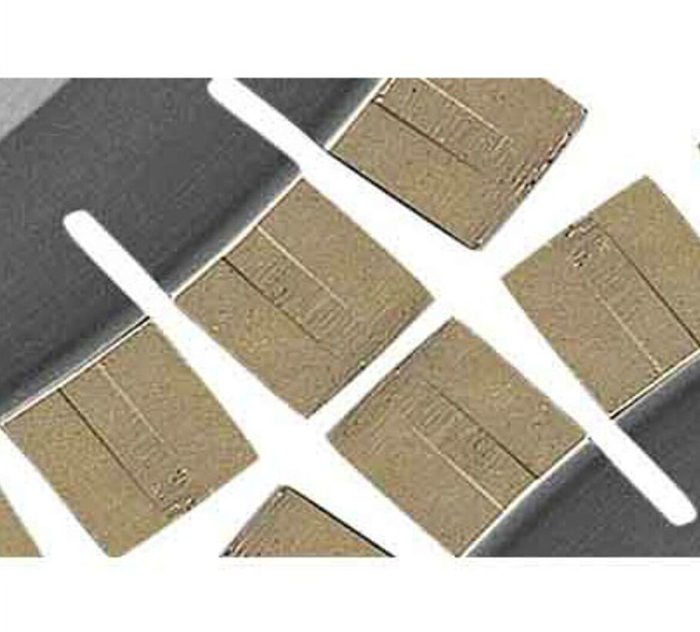

    SHORT-T Splitting Blade And Segment For Granite
